버거스 방정식 기반 신경망 (Burgers’ Equation-Informed Neural Network) 코드 업데이트

by 세인트워터멜론 2022. 1. 11.

일전에 포스팅한 버거스 방정식(Burgers' equation)에 대한 물리정보신경망(PINN, Physics-Informed Neural Network) Tensorflow2 코드를 업데이트했다.





버거스 방정식과 초기조건, 경계조건, 그리고 신경망 구조, 콜로케이션 포인트, 데이터 포인트 등은 모두 전에 사용된 코드와 동일하다.



https://pasus.tistory.com/162



차이점은 두가지다. 먼저 물리정보 신경망에서 \(u_t, u_x, u_{xx}\) 를 계산할 때 기존의 tf.GradientTape.gradient 대신에 tf.gradients 함수를 사용했다. 해당 코드는 다음과 같다. @tf.function을 사용해서 한결 간단해졌다.



    @tf.function
    def physics_net(self, xt):
        x = xt[:, 0:1]
        t = xt[:, 1:2]
        xt_t = tf.concat([x, t], 1)
        u = self.burgers(xt_t)
        u_x = tf.gradients(u, x)
        u_xx = tf.gradients(u_x, x)
        u_t = tf.gradients(u, t)

        return u_t + u*u_x - (0.01/tf.constant(np.pi))*u_xx



두번째는 옵티마이저로서 Adam 뿐만 아니라 L-BFGS 옵티마이저도 사용한 것이다. L-BFGS는 PINN의 기본 옵티마이저로 인식될 정도로 널리 사용된다. Adam 옵티마이저를 먼저 사용하고 이어서 L-BFGS 옵티마이저를 사용했다.

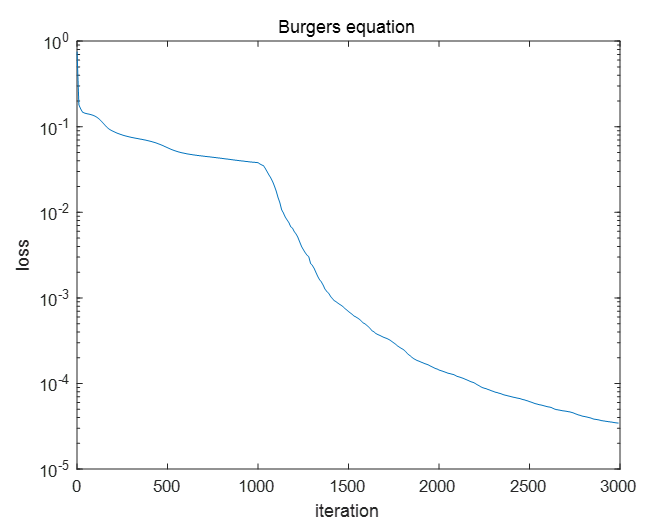

Adam 옵티마이저를 이용한 1,000번의 iteration과 바로 이어서 L-BFGS-B 옵티마이저를 이용한 2,000번의 iteration을 수행한 결과, 손실값은 다음과 같다. loss 값이 전보다 15/1000 배 작아졌음을 알 수 있다.

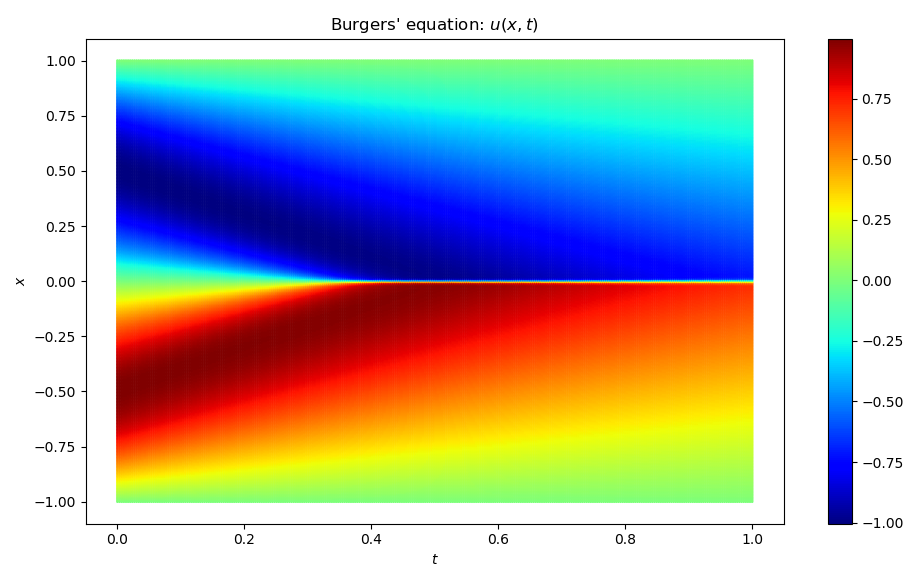

전체 계산 영역 \( x \in [-1, 1], \ t \in [0, 1]\) 에서 버거스 방정식의 해는 다음과 같다.





다음은 버거스 방정식에 대한 업데이트된 PINN의 전체 코드다.



burgers_model_lbfgs.py



# PINN for Burgers' equation (L-BFGS anf tf.gradient version)
# coded by St.Watermelon

import tensorflow as tf
from tensorflow.keras.models import Model
from tensorflow.keras.layers import Dense
from tensorflow.keras.optimizers import Adam
import matplotlib.pyplot as plt
import numpy as np
import scipy.optimize
from time import time

from burgers_ic_bc_data import burgers_data

class Burgers(Model):

    def __init__(self):
        super(Burgers, self).__init__()

        initializer = tf.keras.initializers.GlorotUniform

        self.h1 = Dense(20, activation='tanh', kernel_initializer=initializer)
        self.h2 = Dense(20, activation='tanh', kernel_initializer=initializer)
        self.h3 = Dense(20, activation='tanh', kernel_initializer=initializer)
        self.h4 = Dense(20, activation='tanh', kernel_initializer=initializer)
        self.h5 = Dense(20, activation='tanh', kernel_initializer=initializer)
        self.h6 = Dense(20, activation='tanh', kernel_initializer=initializer)
        self.u = Dense(1, activation='linear')


    def call(self, state):
        x = self.h1(state)
        x = self.h2(x)
        x = self.h3(x)
        x = self.h4(x)
        x = self.h5(x)
        x = self.h6(x)
        out = self.u(x)
        return out


class BurgersPinn(object):

    def __init__(self):

        self.lr = 0.001
        self.opt = Adam(self.lr)

        self.burgers = Burgers()
        self.burgers.build(input_shape=(None, 2))

        self.train_loss_history = []
        self.iter_count = 0
        self.instant_loss = 0

    @tf.function
    def physics_net(self, xt):
        x = xt[:, 0:1]
        t = xt[:, 1:2]
        xt_t = tf.concat([x, t], 1)
        u = self.burgers(xt_t)
        u_x = tf.gradients(u, x)
        u_xx = tf.gradients(u_x, x)
        u_t = tf.gradients(u, t)

        return u_t + u*u_x - (0.01/tf.constant(np.pi))*u_xx


    def save_weights(self, path):
        self.burgers.save_weights(path + 'burgers.h5')


    def load_weights(self, path):
        self.burgers.load_weights(path + 'burgers.h5')


    def compute_loss(self, f, u_bnd_hat, u_bnd_sol):

        loss_col = tf.reduce_mean(tf.square(f))
        loss_bnd = tf.reduce_mean(tf.square(u_bnd_hat - u_bnd_sol))

        loss = loss_col + loss_bnd

        return loss



    def compute_grad(self, xt_col, xt_bnd, u_bnd_sol):
        with tf.GradientTape() as tape:
            f = self.physics_net(xt_col)
            u_bnd_hat = self.burgers(xt_bnd)

            loss = self.compute_loss(f, u_bnd_hat, u_bnd_sol)

        grads = tape.gradient(loss, self.burgers.trainable_variables)

        return loss, grads


    def callback(self, arg=None):
        if self.iter_count % 10 == 0:
            print('iter=', self.iter_count, ', loss=', self.instant_loss)
            self.train_loss_history.append([self.iter_count, self.instant_loss])
        self.iter_count += 1



    def train_with_adam(self, xt_col, xt_bnd, u_bnd_sol, adam_num):

        def learn():
            loss, grads = self.compute_grad(xt_col, xt_bnd, u_bnd_sol)

            self.opt.apply_gradients(zip(grads, self.burgers.trainable_variables))

            return loss

        for iter in range(int(adam_num)):

            loss = learn()

            self.instant_loss = loss.numpy()
            self.callback()


    def train_with_lbfgs(self, xt_col, xt_bnd, u_bnd_sol, lbfgs_num):

        def vec_weight():
            # vectorize weights
            weight_vec = []

            # Loop over all weights
            for v in self.burgers.trainable_variables:
                weight_vec.extend(v.numpy().flatten())

            weight_vec = tf.convert_to_tensor(weight_vec)
            return weight_vec
        w0 = vec_weight().numpy()

        def restore_weight(weight_vec):
            # restore weight vector to model weights
            idx = 0
            for v in self.burgers.trainable_variables:
                vs = v.shape

                # weight matrices
                if len(vs) == 2:
                    sw = vs[0] * vs[1]
                    updated_val = tf.reshape(weight_vec[idx:idx + sw], (vs[0], vs[1]))
                    idx += sw

                # bias vectors
                elif len(vs) == 1:
                    updated_val = weight_vec[idx:idx + vs[0]]
                    idx += vs[0]

                # assign variables (Casting necessary since scipy requires float64 type)
                v.assign(tf.cast(updated_val, dtype=tf.float32))


        def loss_grad(w):
            # update weights in model
            restore_weight(w)
            loss, grads = self.compute_grad(xt_col, xt_bnd, u_bnd_sol)
            # vectorize gradients
            grad_vec = []
            for g in grads:
                grad_vec.extend(g.numpy().flatten())

            # gradient list to array
            # scipy-routines requires 64-bit floats
            loss = loss.numpy().astype(np.float64)
            self.instant_loss = loss
            grad_vec = np.array(grad_vec, dtype=np.float64)

            return loss, grad_vec

        return scipy.optimize.minimize(fun=loss_grad,
                                       x0=w0,
                                       jac=True,
                                       method='L-BFGS-B',
                                       callback=self.callback,
                                       options={'maxiter': lbfgs_num,
                                                'maxfun': 50000,
                                                'maxcor': 50,
                                                'maxls': 50,
                                                'ftol': 1.0 * np.finfo(float).eps})


    def predict(self, xt):
        u_pred = self.burgers(xt)
        return u_pred


    def train(self, adam_num, lbfgs_num):

        xt_col, xt_bnd, u_bnd_sol = burgers_data()

        # Start timer
        t0 = time()
        self.train_with_adam(xt_col, xt_bnd, u_bnd_sol, adam_num)
        # Print computation time
        print('\nComputation time of adam: {} seconds'.format(time() - t0))
        t1 = time()
        self.train_with_lbfgs(xt_col, xt_bnd, u_bnd_sol, lbfgs_num)
        # Print computation time
        print('\nComputation time of L-BFGS-B: {} seconds'.format(time() - t1))

        self.save_weights("./save_weights/")

        np.savetxt('./save_weights/loss.txt', self.train_loss_history)
        train_loss_history = np.array(self.train_loss_history)

        plt.plot(train_loss_history[:, 0], train_loss_history[:, 1])
        plt.yscale("log")
        plt.show()


# main
def main():

    adam_num = 1000
    lbfgs_num = 2000
    agent = BurgersPinn()

    agent.train(adam_num, lbfgs_num)


if __name__=="__main__":
    main()











burgers_ic_bc_data.py



# Setting initial and boundary conditions
# PINN for Burgers' equation (L-BFGS version)
# coded by St.Watermelon

import tensorflow as tf
import numpy as np

def burgers_data():

    # set number of data points
    N_b = 500    # boundary
    N_t = 500    # initial time
    N_c = 20000  # collocation point

    # set boundary
    xmin = -1.0
    xmax = 1.0
    tmin = 0.0
    tmax = 1.0

    # initial condition
    initial_xt = np.linspace([xmin, tmin], [xmax, tmin], N_t)
    initial_u = -np.sin(np.pi * initial_xt[:,0]).reshape(-1,1)

    # boundary condition
    boundary_up = np.linspace([xmax, tmin], [xmax, tmax], N_b)
    boundary_up_sol = np.zeros((N_b, 1))
    boundary_down = np.linspace([xmin, tmin], [xmin, tmax], N_b)
    boundary_down_sol = np.zeros((N_b, 1))

    # collection of initial and boundary condition
    xt_bnd = np.concatenate([initial_xt, boundary_up, boundary_down], axis=0)
    u_bnd_sol = np.concatenate([initial_u, boundary_up_sol, boundary_down_sol], axis=0)


    # collocation point
    t_col_data = np.random.uniform(tmin, tmax, [N_c, 1])
    x_col_data = np.random.uniform(xmin, xmax, [N_c, 1])
    xt_col_data = np.concatenate([x_col_data, t_col_data], axis=1)
    xt_col = np.concatenate((xt_col_data, xt_bnd), axis=0)

    # convert all to tensors
    xt_col = tf.convert_to_tensor(xt_col, dtype=tf.float32)
    xt_bnd = tf.convert_to_tensor(xt_bnd, dtype=tf.float32)
    u_bnd_sol = tf.convert_to_tensor(u_bnd_sol, dtype=tf.float32)

    return xt_col, xt_bnd, u_bnd_sol





load_eval_map.py



from burgers_model_lbfgs import *
import matplotlib.pyplot as plt

agent = BurgersPinn()
agent.load_weights('./save_weights/')

# data for validation
x_input = np.linspace(-1.0, 1.0, 300)
t_input = np.linspace(0.0, 1.0, 300)

x_data = x_input.reshape(-1,1)

uxt_res = []

for t in t_input:
    t_data = t * np.ones(x_data.shape)
    xt_data = np.concatenate([x_data, t_data], axis=1)
    u_pred = agent.predict(tf.convert_to_tensor(xt_data, dtype=tf.float32))
    uxt = np.concatenate([xt_data, u_pred.numpy()], axis=1)
    uxt_res.append(uxt)

uxt_res = np.array(uxt_res)
uxt_res = uxt_res.reshape(-1,3)

# plotting
plt.figure(1)
plt.scatter(uxt_res[:, 1], uxt_res[:, 0], c=uxt_res[:,2], s=1, cmap="jet")
plt.colorbar()
plt.xlabel('$t$')
plt.ylabel('$x$')
plt.title("Burgers' equation: $u(x,t)$")
plt.show()
